Circuit Diagram Of Zero Crossing Detector. In the figure shown above, we can observe that the output transitions either from − v s a t to + v s a t or from + v s a t to − v s a t whenever the sinusoidal input signal is crossing zero volts. Zero crossing detector circuit is one such example through which we can explore the attributes of ac signal.
In the figure shown above, we can observe that the output transitions either from − v s a t to + v s a t or from + v s a t to − v s a t whenever the sinusoidal input signal is crossing zero volts. This is applied to the base of the transistor. It detects a zero voltage reference point of the ac signal or a sine wave that is a zero crossing point of the ac signal.
rain bird sprinkler wiring diagram antenna power injector schematic 1990 f 250 wiring diagram 97 cherokee fuse box
Zero Crossing Detector Circuit Diagram using OpAmp
The figure above show s simple 741 opamp based zero crossing detector circuit which can be used for all applications requiring a zero crossing based execution. Zero crossing detection circuit comprises two main electronics components. The output of the h11aa1 is connected to arduino dp2 to use its internal interrupt intr0. Zero cross detector is basically a comparator circuit that compares the input sinusoidal signal or sine wave signal with the zero voltage level, in other words, we can say that this.
Source: microcontrollerslab.com
Zero cross detector is basically a comparator circuit that compares the input sinusoidal signal or sine wave signal with the zero voltage level, in other words, we can say that this. Many zero crossing detector use split supply (symmetric supply), but this zero crossing detector circuit only need a single supply, thus suitable for. The supply voltage can be single.
Source: pinterest.com
It is used for ac power control circuits. A portmanteau of memory resistor) was a term coined in 1971 by. This variation still uses the h11aa1 but can be directly connected to 120vac. The sketch is shown below. The rectified voltage is supplied to pins 1 and 2 of 4n25 optocoupler.
Source: electronics.stackexchange.com
The rectified voltage is supplied to pins 1 and 2 of 4n25 optocoupler. It detects a zero voltage reference point of the ac signal or a sine wave that is a zero crossing point of the ac signal. As the name indicates the zero crossing detector is a device for detecting the point where the voltage crosses zero in either.
Source: multisim.com
The rectified voltage is supplied to pins 1 and 2 of 4n25 optocoupler. 0 51 less than a minute. This is applied to the base of the transistor. The o/p of the comparator can drive various outputs such as an led indicator, a relay, and a control gate. The output of the h11aa1 is connected to arduino dp2 to use.
Source: researchgate.net
Thus, it is essential to study the properties of these signals so that we can extract information from them and manipulate them. This is applied to the base of the transistor. A portmanteau of memory resistor) was a term coined in 1971 by. Zero cross detector is basically a comparator circuit that compares the input sinusoidal signal or sine wave.
Source: fypsolutions.com
The purpose of the circuit is to start the triac conducting very near the time point when the load voltage is crossing zero volts. Here is the schematic diagram: In the above circuit diagram the first section is a bridge rectifier, which provides full wave rectified output. This is applied to the base of the transistor. Zero cross detector is.
Source: microcontrollerslab.com
Find this pin and more on elettronica by luca romano. Zero crossing detector circuit is one such example through which we can explore the attributes of ac signal. A 20 kiloohm load resistor is connected to the output of the transistor. The supply voltage can be single or dual. The sketch is shown below.
Source: electronics.stackexchange.com
In the figure shown above, we can observe that the output transitions either from − v s a t to + v s a t or from + v s a t to − v s a t whenever the sinusoidal input signal is crossing zero volts. Zero cross detector is basically a comparator circuit that compares the input sinusoidal.
Source: youtube.com
A 20 kiloohm load resistor is connected to the output of the transistor. Here is the schematic diagram: Single supply zero crossing detector. An overview of transistor driver circuits for use with microcontrollers with sample circuits. 0 51 less than a minute.
Source: circuitstoday.com
The o/p of the comparator can drive various outputs such as an led indicator, a relay, and a control gate. Through a base resistor, r2. An overview of transistor driver circuits for use with microcontrollers with sample circuits. The sketch is shown below. If you are an electronics engineer and you are working on power electronics projects, you may come.
Source: circuitdigest.com
Through a base resistor, r2. Single supply zero crossing detector. One is an operational amplifier and the second one is passive electronic components such as resistors, capacitors. Here is the schematic diagram: The supply voltage can be single or dual.
Source: ko4bb.com
This is applied to the base of the transistor. Zero cross detector is basically a comparator circuit that compares the input sinusoidal signal or sine wave signal with the zero voltage level, in other words, we can say that this detects the voltage changing from positive level to negative level and negative level to positive level. Here is the schematic.
Source: researchgate.net
Single supply zero crossing detector. Zero cross detector is basically a comparator circuit that compares the input sinusoidal signal or sine wave signal with the zero voltage level, in other words, we can say that this. The stepped down ac voltage is feed to full bridge rectifier circuit built using 1n4007 diodes. Find this pin and more on elettronica by.
Source: circuitspedia.com
The figure above show s simple 741 opamp based zero crossing detector circuit which can be used for all applications requiring a zero crossing based execution. The stepped down ac voltage is feed to full bridge rectifier circuit built using 1n4007 diodes. Many zero crossing detector use split supply (symmetric supply), but this zero crossing detector circuit only need a.
Source: seekic.com
The figure above show s simple 741 opamp based zero crossing detector circuit which can be used for all applications requiring a zero crossing based execution. The reference voltage with which the input voltage is to be compared, must be made zero (vref. The purpose of the circuit is to start the triac conducting very near the time point when.
Source: microcontrollerslab.com

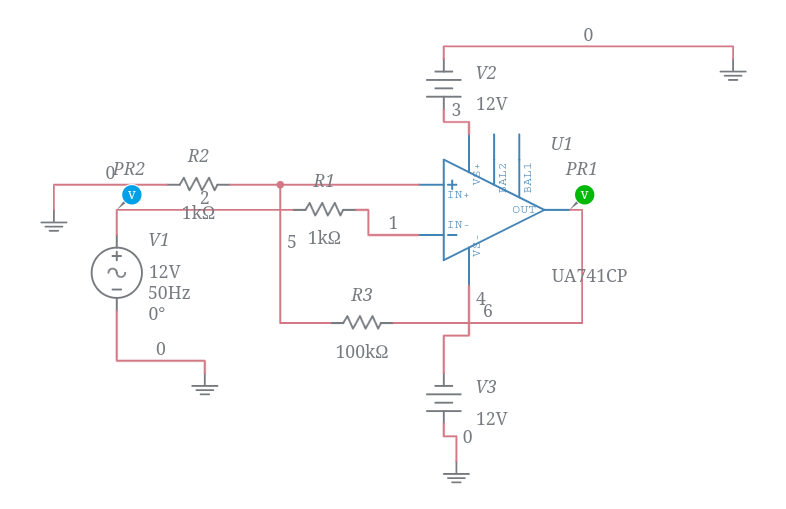

The operational amplifier’s terminal is updated with a sine wave input (vin), given in the circuit diagram. Zero crossing detector circuit is used to produce an o/p stage switch whenever the i/p crosses the reference i/p and it is connected to the gnd terminal. Here is the schematic diagram: 0 51 less than a minute. An overview of transistor driver.
Source: multisim.com
Zero crossing detector circuit is one such example through which we can explore the attributes of ac signal. An overview of transistor driver circuits for use with microcontrollers with sample circuits. The operational amplifier’s terminal is updated with a sine wave input (vin), given in the circuit diagram. One is an operational amplifier and the second one is passive electronic.
Source: circuitstoday.com
This variation still uses the h11aa1 but can be directly connected to 120vac. It can also be called as the sine to square wave converter. Through a base resistor, r2. Zero cross detector is basically a comparator circuit that compares the input sinusoidal signal or sine wave signal with the zero voltage level, in other words, we can say that.
Source: engineersgarage.com
This is applied to the base of the transistor. Zero crossing detector circuit is one such example through which we can explore the attributes of ac signal. It can also be called as the sine to square wave converter. What is zero crossing detector zero crossing detector detects how many times the input signal crossed the zero value or zero.
Source: youtube.com
Zero crossing detector circuit is used to produce an o/p stage switch whenever the i/p crosses the reference i/p and it is connected to the gnd terminal. The output of the h11aa1 is connected to arduino dp2 to use its internal interrupt intr0. Through a base resistor, r2. Zero cross detector is basically a comparator circuit that compares the input.
