Logic Diagram Of 4 To 2 Encoder. In 4 to 2 types, the total inputs are four namely d0, d1, d2 & d3, and outputs are two like x & y. This valid bit will check if all the four input pins are low (0) if low the bit will also make itself low stating that the output is not valid thus we can overcome the first drawback mentioned above.
4 to 2 line encoder. The circuit diagram of 4 to 2 priority encoder is shown in the following figure. This valid bit will check if all the four input pins are low (0) if low the bit will also make itself low stating that the output is not valid thus we can overcome the first drawback mentioned above.
2015 colorado wiring diagram conveyor wiring diagram 1984 chevy 305 engine wiring diagram statement diy speaker wiring diagram

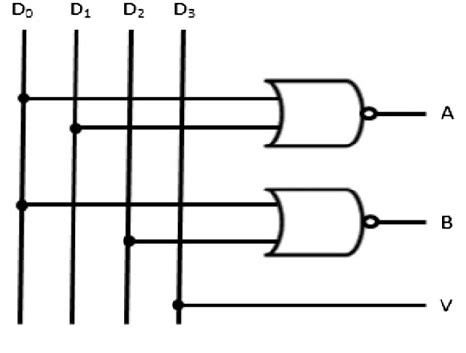

The logic circuit diagram of 4 × 2 Encoder. Download
To develop the source code for 4 to 2 line priority encoder by using verilog and obtain the simulation and synthesis. 4 to 2 line encoder. Novel design of reversible priority encoder in quantum dot cellular automata based on toffoli gate and. For a priority encoder, the output is dependant on the highest priority bit.
Source: technobyte.org
In 4 to 2 types, the total inputs are four namely d0, d1, d2 & d3, and outputs are two like x & y. The output v indicates if the input is valid. Below are the block diagram and the truth table of the 4 to 2 line encoder. Draw the logic diagram for a 4:2 encoder using | chegg.com..
Source: ati.ttu.ee
A = d3 + d1d2′ b= d2 + d3 v = d0 + d1 + d2 + d3. 10 truth table 10 2. 8 to 3 priority encoder circuit diagram. For a priority encoder, the output is dependant on the highest priority bit. Study the functionality of priority encoder.
Source: circuitverse.org
The circuit diagram of 4 to 2 priority encoder is shown in the following figure. The output v indicates if the input is valid. In a 4:2 encoder, the circuit takes in 4 bits of data as input. 4 to 2 priority encoder circuit diagram 00, 01, 10, and 11.
Source: lunarheiress.blogspot.com
00, 01, 10, and 11. The truth table consists of four rows, since, it is assumed that only one input is the value of 1 then the corresponding binary code associated with that enabled input is displayed at the outputs. 2 draw the logic diagram of a 2 bit encoder a circuit with four input lines from com 312 at.
Source: wiringideas.blogspot.com
Electrical engineering questions and answers. Design 4 to 2 encodertruth table 4 to 2 encoderlogic diagram for 4 to 2 encoder. Draw the logic diagram for a 4:2 encoder using any logic gates. The truth table consists of four rows, since, it is assumed that only one input is the value of 1 then the corresponding binary code associated with.
Source: wiringideas.blogspot.com
Once the above one input is ‘1’ simultaneously, the output will be the binary code that is equivalent to the high priority input. In a 4:2 encoder, the circuit takes in 4 bits of data as input. The truth table for the 4 to 2 lines is shown below. Draw the logic diagram for a 4:2 encoder using any logic.
Source: slideserve.com
Vhdl code for 4 to 2 encoder can be designed both in structural and behavioral modelling. A 4:2 priority encoder has four inputs and two outputs like a normal binary encoder. 00, 01, 10, and 11. 30 specify the truth table of. Design 4 to 2 encodertruth table 4 to 2 encoderlogic diagram for 4 to 2 encoder.
Source: researchgate.net
Draw the logic diagram for a 4:2 encoder using | chegg.com. It then codes the data to give an output of two bits. In 4 to 2 line encoder, there are total of four inputs, i.e., y 0, y 1, y 2, and y 3, and two outputs, i.e., a 0 and a 1. 4 to 2 line encoder: The.
Source: researchgate.net
Here and gate & inverter combination are used for producing a valid code at the outputs, even when multiple inputs are equal to ‘1’ at the same time. The truth table consists of four rows, since, it is assumed that only one input is the value of 1 then the corresponding binary code associated with that enabled input is displayed.
Source: geeksforgeeks.org
Functional block diagram of 74ls147 10. Download scientific diagram | block diagram of 4 to 2 priority encoder from publication: Draw the logic diagram for a 4:2 encoder using | chegg.com. Let’s write the truth table for a 4:2 priority encoder. Octal to binary encoder has eight inputs y 7 to y 0 and three outputs a 2 a 1.
Source: circuitverse.org
To develop the source code for 4 to 2 line priority encoder by using verilog and obtain the simulation and synthesis. D0 =a1 a0, ( minterm m0) which corresponds to input 00 d1 =a1 a0, ( minterm m1) which corresponds to input 01 d2 =a1 a0, ( minterm m2) which corresponds to input 10 d3 =a1 a0, ( minterm m3).
Source: onlinedocs.microchip.com
When any of the input lines becomes 1, we get corresponding binary at the output lines. This valid bit will check if all the four input pins are low (0) if low the bit will also make itself low stating that the output is not valid thus we can overcome the first drawback mentioned above. A 4 to 2 line.
Source: researchgate.net
A 4:2 priority encoder has four inputs and two outputs like a normal binary encoder. 10 truth table 10 2. 4 to 2 line encoder. From these output expressions, the 4 to 2 priority encoder circuit diagram is illustrated with logic gates as shown below. 2 draw the logic diagram of a 2 bit encoder a circuit with four input.
Source: slideserve.com
D0 =a1 a0, ( minterm m0) which corresponds to input 00 d1 =a1 a0, ( minterm m1) which corresponds to input 01 d2 =a1 a0, ( minterm m2) which corresponds to input 10 d3 =a1 a0, ( minterm m3) which corresponds. When any of the input lines becomes 1, we get corresponding binary at the output lines. A 4 to.
Source: multisim.com
Here and gate & inverter combination are used for producing a valid code at the outputs, even when multiple inputs are equal to ‘1’ at the same time. A = d3 + d1d2′ b= d2 + d3 v = d0 + d1 + d2 + d3. Vhdl code for 4 to 2 encoder can be designed both in structural and.
Source: youtube.com
4 to 2 line encoder: The truth table for the 4 to 2 lines is shown below. So, if n represents given input lines then possible output lines would be 2 n. 4 to 2 encoder|design 4 to 2 encoder|4 to 2 encoder truth table and circuit diagram Here, we will be writing the vhdl code for a 4:2 encoder.
Source: circuitverse.org
The output v indicates if the input is valid. Octal to binary encoder has eight inputs y 7 to y 0 and three outputs a 2 a 1 a 0. A = d3 + d1d2′ b= d2 + d3 v = d0 + d1 + d2 + d3. 30 specify the truth table of. A 4:2 priority encoder has four.
Source: basicenggknowledge.blogspot.com
Let’s write the truth table for a 4:2 priority encoder. The circuit diagram for a 4 to 2 line encoder is shown below octal to binary encoder. Electrical engineering questions and answers. Truth table of 4 to 2 line encoder is, input. 00, 01, 10, and 11.
Source: researchgate.net
The circuit diagram for a 4 to 2 line encoder is shown below octal to binary encoder. In a 4:2 encoder, the circuit takes in 4 bits of data as input. 2 draw the logic diagram of a 2 bit encoder a circuit with four input lines from com 312 at saint leo university Now we know possible outputs for.
Source: youtube.com
Draw the logic diagram for a 4:2 encoder using | chegg.com. Functional block diagram of 74ls147 10. Design 4 to 2 encodertruth table 4 to 2 encoderlogic diagram for 4 to 2 encoder. A = d3 + d1d2′ b= d2 + d3 v = d0 + d1 + d2 + d3. Study the functionality of priority encoder.
